High Efficiency Particulate Air Filter
HEPA media is made of ultra fine glass formed into a 0.38mm thick mat and is pleated to allow a larger surface area to be incorporated within the housing. Use hot melting glue to replace traditional aluminum separators.
All HEPA filter efficiency is tested in accordance with US MIL-STD-282 (EU Standard) and EN1822. The series provide guarantee efficiency from 99.97%, 99.99% to 99.999% (EU12-EU14) or H10-H14 (per EN-1822 standard in MPPS Test) on 0.3 micrometer size particles HEPA filter; and 99.999% to 99.999999% or U15-U16 (per EN-1822 standard in MPPS Test) ULPA filter.
Aluminum extruded frame can increase strength and rigidity for corrosion resistance.
Mini Pleat series filter is suitable for clean room, workstations and benches FFU use.
Features:
No Corrugated Aluminum Separators
High Efficiency and Low Pressure Drop
Allow Great Amount of Media in Shallow Depth
The air flow, initial resistance and dust collection capacity of the Mini Pleat Series media w/55mm pack is much better than conventional HEPA filter which is made with corrugate aluminum separators and with a 150mm deep.
For handling large air volume, the operation cost becomes a prime consideration in a typical clean room application. One of the most important is to evaluate the Pressure Drop of HEPA due to Pressure losses of HEPA will be consumed the most energy in any clean room.
AIRREX Mini Pleat HEPA/ULPA Filter is designed for extending filter¡¯s life span and decreasing the pressure drop. Mini Pleat series filter is suitable for clean room, workstations and benches FFU use.
Efficiency:
All HEPA filter efficiency is tested in accordance with US MIL-STD-282 (EU Standard) and EN1822. The series provide guarantee efficiency from 99.97%, 99.99% to 99.999% (EU12-EU14) or H10-H14 (per EN-1822 standard in MPPS Test) on 0.3 micrometer size particles HEPA filter; and 99.999% to 99.999999% or U15-U16 (per EN-1822 standard in MPPS Test) on 0.1 ¨C 0.2 micrometer size particles ULPA filters..
Media:
HEPA media is made from ultra fine glass fiber formed with high density papers. Use hot melting glue to replace traditional aluminum separators. Each pleat is spaced by hot-melt adhesive to allow air flow through the filter with minimum resistance. Inside of frame to be sealed by sealant to prevent filter media leakage.
Frame:
The filter media pack is permanently bonded with epoxy or PU to an anodized aluminum extruded frame or wood board frame. Aluminum extruded frame can increase strength and rigidity for corrosion resistance
High Efficiency Filter Performance Data

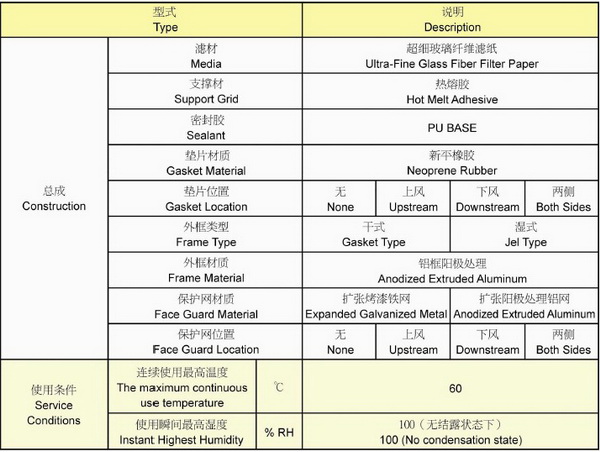

Material and Service Gonditions
|
